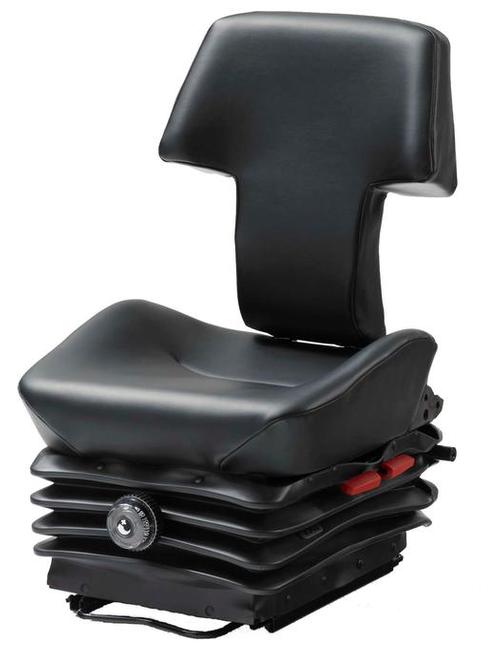

KAB 525-M3 T-Cut Underground

KAB 525-M3 T-Cut Underground

Contact us for a price

The 525-M3 is a specially designed seat for use in underground mining machinery and is the factory standard in many Caterpillar machines.  It consists of a mechanical suspension and a mid-height, PVC, cut out backrest to allow the operator to sit comfortably and supported whilst wearing a belt mounted rescue pack.  The suspension is height, weight and tilt adjustable with slide rails, optional lap belt and back recline.

SKU: KA-KSS525M3 Categories: , Brand:

Product Description

The 525-M3 is a specially designed seat for use in underground mining machinery and is the factory standard in many Caterpillar machines.  It consists of a mechanical suspension and a mid-height, PVC, cut out backrest to allow the operator to sit comfortably and supported whilst wearing a belt mounted rescue pack.

The suspension is height, weight and tilt adjustable with slide rails, optional lap belt and back recline.  Available with the F1 seat top if preferred.

The T seat top is also available on its own as a static seat with no suspension.

Features

Brand
Brand

KAB
Suspension Type
(Suspension Type) Model

KAB 52
(Suspension Type) Type

Mechanical – Large
Suspension Features
(SF) Fore/Aft Adjust Lock

Double
(SF) Fore/Aft Adjustment

200mm
(SF) Height Adjust Range

60mm
(SF) Shock Absorber

Fixed
(SF) Slide Rail Width

280mm
(SF) Suspension Travel

100mm
(SF) Weight Adjustment

80-150kg
Seat Top Features
(STF) Back Height

Mid 400-550mm
(STF) Back Tilt

Optional
(STF) Base Tilt

Yes
(STF) Base Width

Std 450-499mm
(STF) Lap Belt

Optional
(STF) Model

KAB T1-Cut
(STF) Trim

PVC
