KAB 564
KAB 564 - Image 2

KAB 564

Contact us for a price

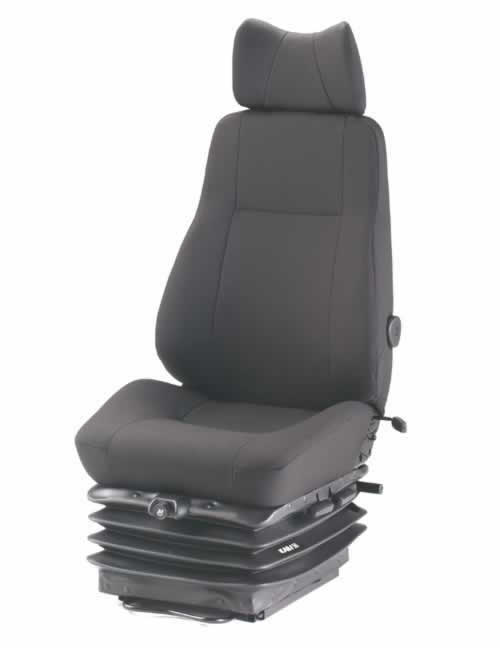

The KAB 564 is a comfortable, versatile heavy duty air suspension seat designed for large off road mining, construction and forestry machinery such as dump trucks, dozers, excavators, loaders, harvesters and more.  Features include adjustable air lumbar, seat tilt, height and weight, back recline with dual locks, 2 dampers and seat heater with optional headrest, arms, belts and mounting choices

SKU: KA564 Categories: , , Brand:

Product Description

The KAB 564 is a comfortable, versatile heavy duty air suspension seat designed for large off road mining, construction and forestry machinery such as dump trucks, dozers, excavators, loaders, harvesters and more.  Features include adjustable air lumbar, seat tilt, height and weight, back recline with dual locks, 2 dampers and seat heater.  Optional extras include adjustable headrest, tilt up adjustable armrests, turntable, lap belt, 3 point belt or harness and an choice of forward, right hand or left hand controls.

Features

Brand
Brand

KAB
Suspension Type
(Suspension Type) Model

KAB 56
(Suspension Type) Type

Air – Large
Suspension Features
(SF) Fore/Aft Adjust Lock

Double
(SF) Fore/Aft Adjustment

200mm
(SF) Height Adjust Range

60mm
(SF) Shock Absorber

Fixed – Dual
(SF) Slide Rail Width

280mm
(SF) Suspension Travel

100mm
(SF) Swivel

Optional
(SF) Weight Adjustment

50-150kg
Seat Top Features
(STF) 3 Point Belt

Optional
(STF) 4 Point Belt

Optional
(STF) Arm Rest

Optional
(STF) Back Height

High >550mm
(STF) Back Tilt

Yes
(STF) Base Tilt

Yes
(STF) Base Width

Std 450-499mm
(STF) Dual Recline Lock

Yes
(STF) Headrest

Optional
(STF) Lap Belt

Optional
(STF) Lumbar Adjustment

Air – Manual
(STF) Model

KAB T4
(STF) OPS

Optional
(STF) Trim

Fabric
Other
Mains Air

Optional
12V Compressor

Optional
24V Compressor

Yes
